Single-Particle Tracking Reveals Anti-Persistent Subdiffusion in Cell Extracts.

Speckner K , Weiss M .

???displayArticle.abstract???
Single-particle tracking (SPT) has become a powerful tool to quantify transport phenomena in complex media with unprecedented detail. Based on the reconstruction of individual trajectories, a wealth of informative measures become available for each particle, allowing for a detailed comparison with theoretical predictions. While SPT has been used frequently to explore diffusive transport in artificial fluids and inside living cells, intermediate systems, i.e., biochemically active cell extracts, have been studied only sparsely. Extracts derived from the eggs of the clawfrog Xenopus laevis, for example, are known for their ability to support and mimic vital processes of cells, emphasizing the need to explore also the transport phenomena of nano-sized particles in such extracts. Here, we have performed extensive SPT on beads with 20 nm radius in native and chemically treated Xenopus extracts. By analyzing a variety of distinct measures, we show that these beads feature an anti-persistent subdiffusion that is consistent with fractional Brownian motion. Chemical treatments did not grossly alter this finding, suggesting that the high degree of macromolecular crowding in Xenopus extracts equips the fluid with a viscoelastic modulus, hence enforcing particles to perform random walks with a significant anti-persistent memory kernel.

???displayArticle.pubmedLink??? 34356433
???displayArticle.pmcLink??? PMC8303845
???displayArticle.link??? Entropy (Basel)
???displayArticle.grants??? [+]

Species referenced: Xenopus laevis
Genes referenced: agxt

???attribute.lit??? ???displayArticles.show???

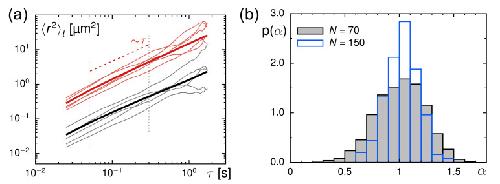

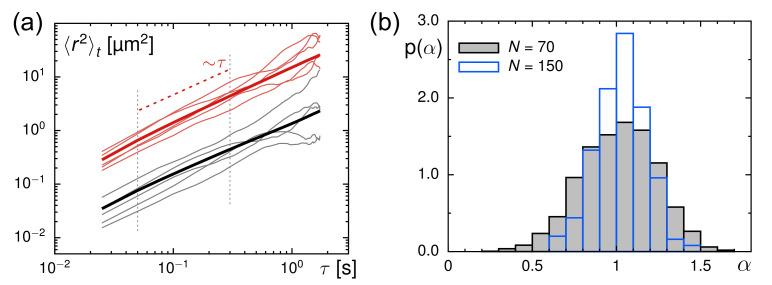

	Figure 1. (a) Representative TA-MSDs for trajectories with length N=70 (randomly chosen from the ensemble) from experiments in glycerol–water mixtures (red thin lines) and in Xenopus extract (black thin lines), together with the respective ensemble-averaged TA-MSDs (colored thick lines). For better visibility, data for calibration experiments have been shifted upward tenfold. The scaling for normal diffusion (〈r2(τ)〉t∼τ) is indicated by a red dashed line; vertical grey dashed lines indicate the fit region used to analyze individual TA-MSDs. (b) The PDF of anomaly exponents, p(α), as obtained from fitting TA-MSDs in glycerol–water mixtures features a mean 〈α〉≈1, irrespective of the trajectory length (black-grey histogram: N=70, blue histogram: N=150).

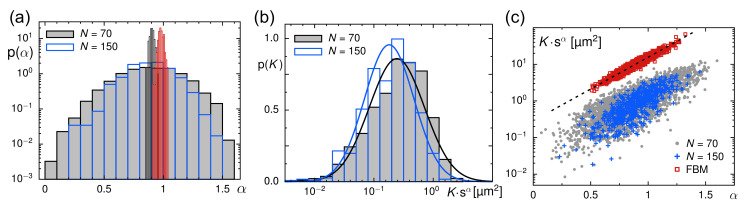

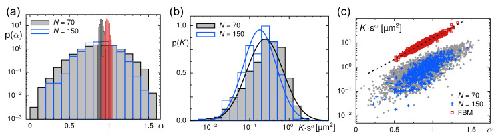

	Figure 2. (a) The PDF of anomaly exponents, p(α), as obtained from fitting TA-MSDs in the interval τ∈[0.05,0.3] s, features a mean 〈α〉≈0.9, irrespective of the trajectory length (black-grey histogram: N=70, blue histogram: N=150). The considerable width of the PDF may not only reflect statistical fluctuations but is likely to also report on spatially varying material properties of the Xenopus extract. Performing a bootstrapping approach with geometric averaging (black-open histogram) confirms the slightly subdiffusive motion of particles, while an arithmetic averaging (red histogram) overestimates the mean scaling exponent; see also main text for discussion. Please note the logarithmic y-axis. (b) The PDF of generalized diffusion coefficients, p(K), shown here versus the average area covered in one second, K×1sα, features an almost lognormal shape (indicated by full lines) for trajectory lengths N=70 (grey/black) and N=150 (blue), with a slight tendency for lower mobilities in longer trajectories. Please see the main text for discussion. (c) A scatter plot of trajectory-wise values of α and K (blue and grey symbols) highlights a correlation between these two quantities, in good agreement with results on simulated FBM trajectories with a Hurst coefficient H=α/2=0.45 (red symbols). The black dashed line is an empiric guide for the eye. FBM simulation data have been shifted upward fivefold for better visibility.

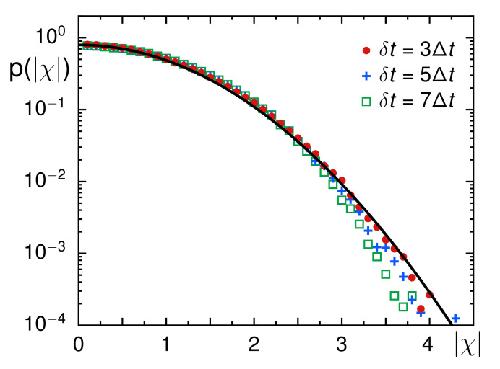

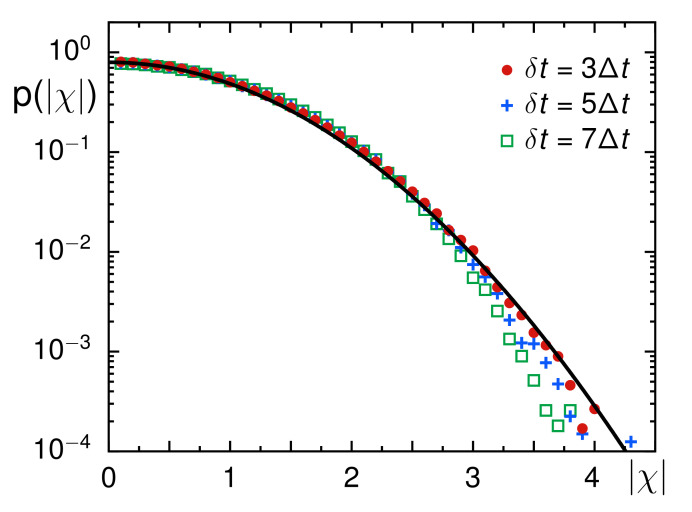

	Figure 3. The PDF of normalized increments taken within a period δt, shown here as p(\|χ\|), complies well with a standard Gaussian (black full line) for different choices of δt (color-coded symbols). For δt≥5Δt and \|χ\|>3, consistently lower probabilities than the Gaussian benchmark are observed for unknown reasons.

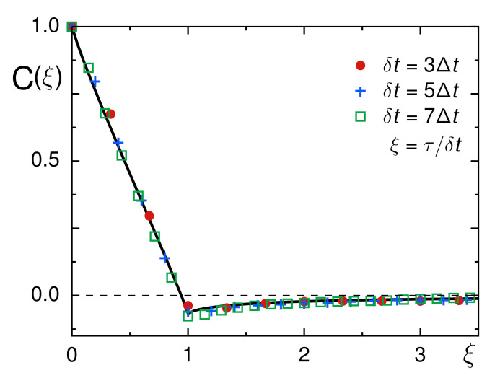

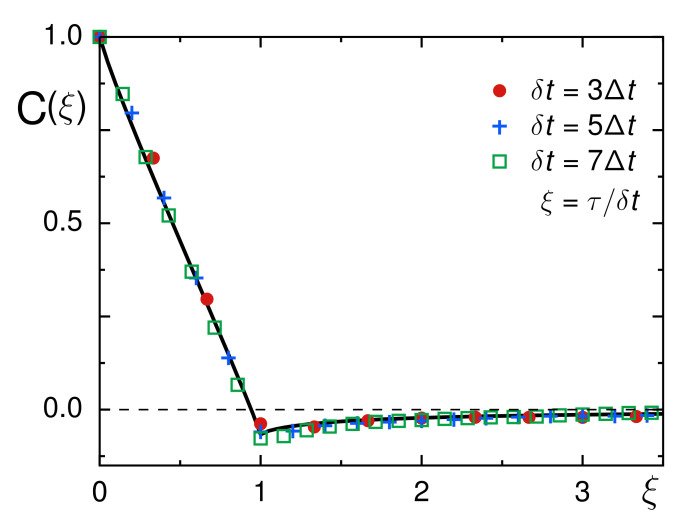

	Figure 4. The normalized VACF, C(ξ), for different choices of δt (color-coded symbols) shows excellent agreement with the FBM prediction [Equation (5)] when inserting the mean scaling exponent 〈α〉=0.9 (full black line). In particular, a clearly negative value of C(ξ=1) confirms an antipersistent random walk, most likely of the FBM type. No significant changes of the VACF minimum are seen for different δt, confirming that trajectories are not plagued by localization errors.

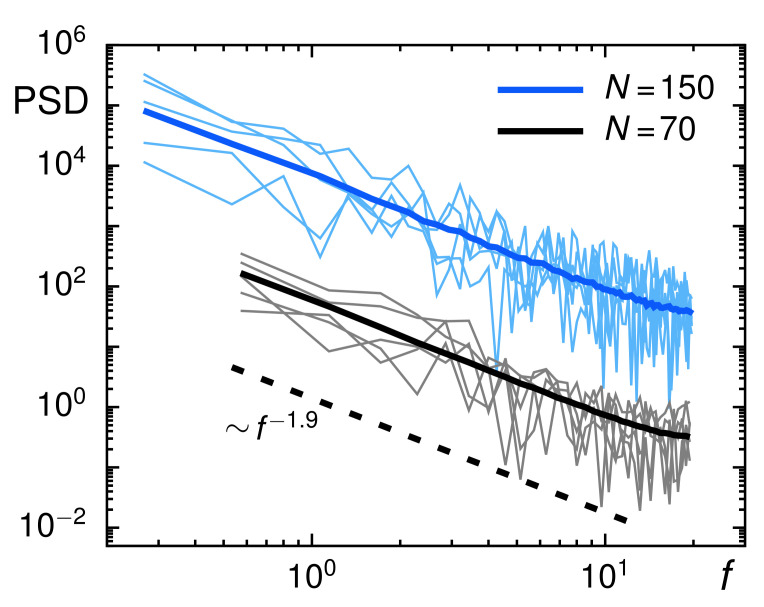

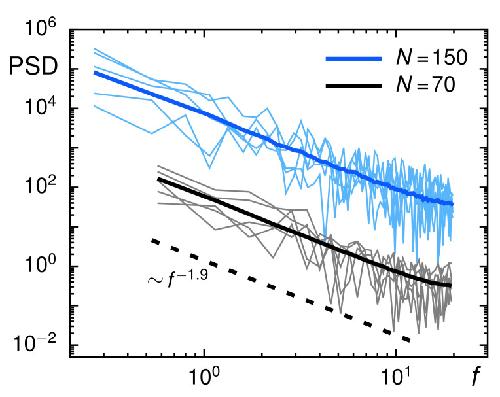

	Figure 5. The PSD of individual trajectories (black and blue thin lines, representing trajectories with length N=70 and N=150, respectively) fluctuate around the ensemble-averaged PSD (thick colored lines). In both cases, the FBM prediction for a scaling S(f)∼1/f1+〈α〉 (with 〈α〉=0.9, dashed line) are nicely met. For better visibility, data for N=150 have been shifted upward 100-fold.

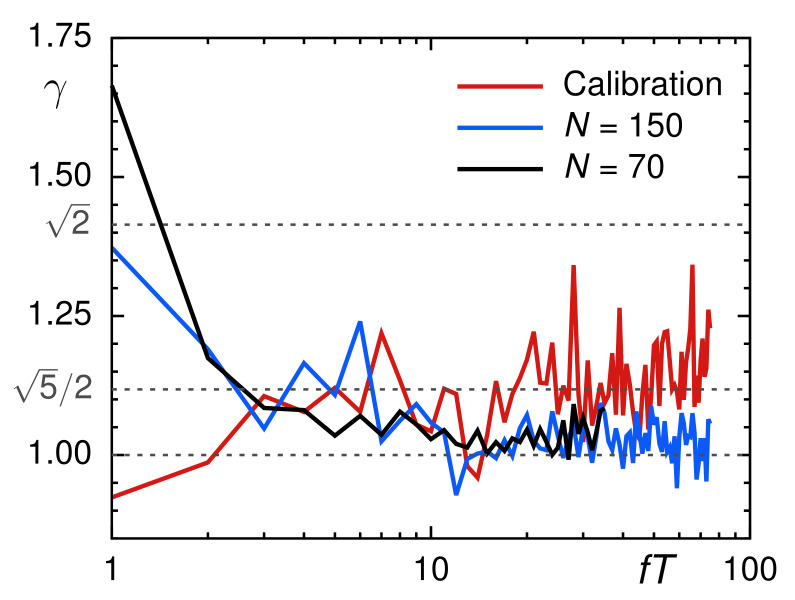

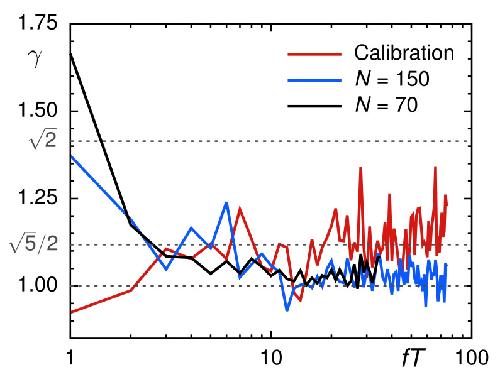

	Figure 6. The coefficient of variation of individual PSDs with respect to the ensemble mean, γ(f), for normally diffusive trajectories from calibration experiments (red line) clearly assumes higher values than those for trajectories from the Xenopus extract (blue and black lines), irrespective of the trajectory length, N. As predicted for FBM, these subdiffusive SPT data converge toward γ=1, whereas normally diffusive data from calibration experiments converge to the predicted value γ=5/2. Both are clearly distinct from the prediction for superdiffusive FBM motion, γ=2. For convenience, frequencies f were made dimensionless by multiplication with the total time T=NΔt covered in each trajectory.
	Figure 7. Representative fluorescence images of beads (upper panel) and microtubules (lower panel) in native and pharmaceutically treated Xenopus extracts (see Materials and Methods for details); scale bars indicate 10 μm. While native extracts feature a significant amount of microtubule filaments (left column), the addition of nocodazole completely eradicates these higher-order structures (right column). In contrast, stabilizing microtubules by taxol further enhances the ‘filament jungle’ (middle column).
