Maccarana M , Tykesson E , Pera EM , Gouignard N , Fang J , Malmström A , Ghiselli G , Li JP .

2018-02503 Swedish Research Council

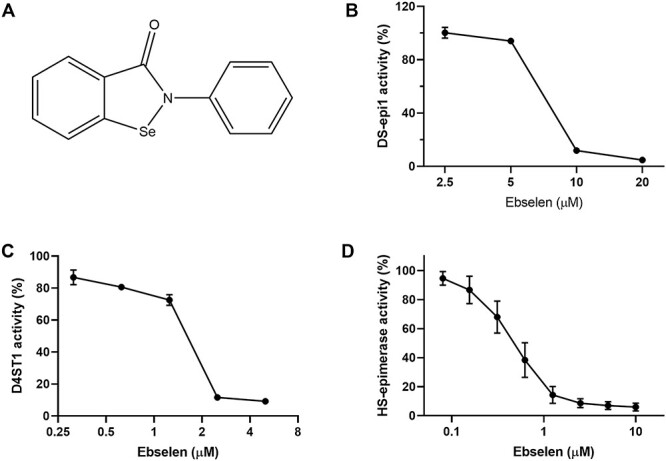

	Fig. 1. Ebselen inhibits the activities of DS epimerase 1 (DS-epi1), DS 4-O-sulfotransferase 1 (D4ST1) and heparan sulfate epimerase (HSepi). (A) Chemical structure of ebselen. (B–D) Activity assays in the presence of ebselen. Data (n = 3) are expressed as percentage of remaining activity compared to control. The calculated IC50 was 7 μM for DS-epi1, 1.5 μM for D4ST1 and 0.8 μM for HSepi.

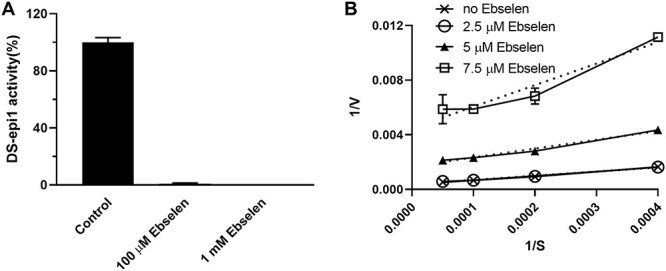

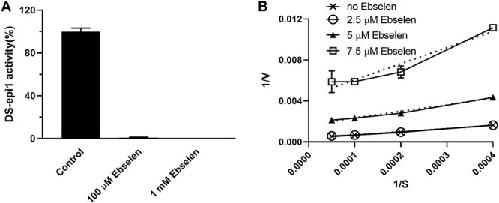

	Fig. 2. Ebselen has an irreversible, noncompetitive mode of action on DS-epi1. (A) Recombinant DS-epi1 (20 ng) was incubated with 100 μM or 1 mM ebselen for 1 h at 37°C. The drug was removed by dialysis against the assay buffer and the DS-epi1 activity was assayed (n = 3). (B) Kinetic studies by incubation of 2 ng of DS-epi1 with variable amount of the substrate and ebselen for 16 h at 37°C. The data are shown as a Lineaweaver-Burk plot (n = 3).

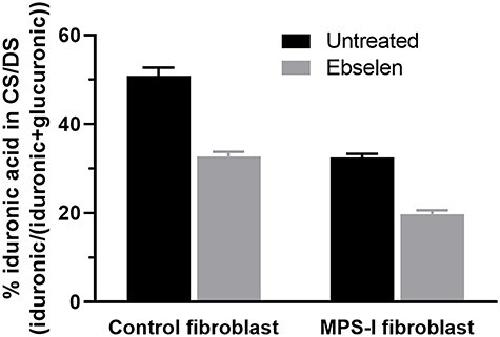

	Fig. 3. Ebselen reduces iduronic acid formation in CS/DS in control and MPS-I fibroblasts. Cells were cultured in the presence of ebselen (20 μM in control and 40 μM in MPS-I fibroblasts) and 35S-sulfate. After 24 h, CS/DS was isolated from the medium and subjected to chondroitinase B digestion which only cleaves the iduronic acid-containing structures. Visualization of the split products on Superdex Peptide gel filtration column allowed the calculation of the content of iduronic acid in CS/DS chains (n = 2).

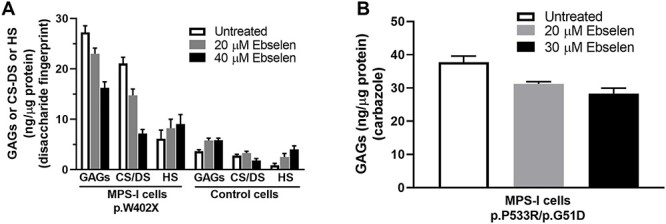

	Fig. 4. Ebselen decreases overall accumulation of CS/DS in MPS-I fibroblasts. Cells were cultured for 10 days in the presence of ebselen at the concentrations indicated. Medium was changed every second day. The GAGs were purified from the cells. (A) CS/DS and HS from control and MPS-I (p.W402X) fibroblasts were completely depolymerized to disaccharides by either chondroitinase ABC or heparinase I, II and III digestion, respectively. The disaccharides were quantified after HPLC separation. The CS/DS and HS content was normalized to the amount of total cellular proteins (n = 3). Total GAGs are the sum of CS/DS and HS. (B) Total GAGs from MPS-I (p.P533R/p.G651D) fibroblasts were analyzed by the carbazole reaction (n = 4).

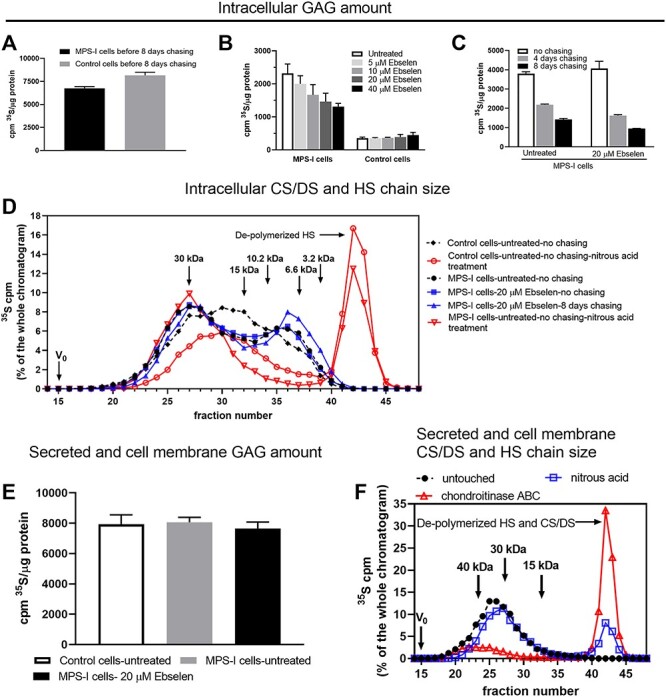

	Fig. 5. Ebselen accelerates catabolism of GAGs in MPS-I fibroblasts. (A–C) Effect of ebselen on the intracellular GAG amount. Control and MPS-I (p.W402X) fibroblasts were cultured in the presence of 35S-sulfate for 72 h. One aliquot of the cells was collected for GAG isolation and quantification (A), and the rest of the cells were equally split in wells of 12-well plates without 35S-sulfate for an additional 8 days (chasing) in the presence of ebselen at variable concentrations as indicated (B). The medium was changed every second day. After 8 days of chasing, the cells were harvested for GAG isolation and quantification. Radioactivity was normalized by the amount of cellular protein (n = 3). (C) Time course of the ebselen effect. MPS-I cells were labeled for 3 days either without or with 20 μM ebselen. After the labeling period, the medium was pooled together with the supernatant of the trypsin treatment of cells to represent mostly intact GAGs that are not subjected to endocytosis. Cells were then chased for 4 and 8 days continuing the treatment. Cells were harvested for GAG isolation and quantification. The radioactivity was normalized by the amount of cellular protein (n = 3). (D) Intracellular CS/DS and HS chain size. GAGs were purified from unchased and 4- and 8-day-chased cells derived from the experiment reported in (C) and were applied to a Superose 6 column. Filled black rhombus: GAGs from unchased and untreated control cells; empty red circle: GAGs from unchased and untreated control cells subjected to nitrous acid deamination at pH 1.5 to depolymerize HS whose degradation products are indicated with an arrow; filled black circle: GAGs from unchased and untreated MPS-I cells; filled blue square: GAGs from unchased and treated with 20 μM ebselen MPS-I cells; filled blue triangle: GAGs from 8 days chased and treated with 20 μM ebselen MPS-I cells; empty red triangle: GAGs from unchased and untreated MPS-I cells subjected to nitrous acid deamination. The chromatograms from MPS-I cells are basically superimposable irrespective of ebselen treatment and chasing or not chasing conditions (all chromatograms not shown for clarity). (E) Production of secreted and cell membrane GAGs. Cells were labeled for 3 days as in (C) and then medium was collected, cells were trypsinized and the supernatant after cell trypsinization was pooled with medium. GAGs were purified and normalized by cell protein (n = 3). (F) Secreted and cell membrane CS/DS and HS chain size. GAGs, prepared as described in (E), were size-fractionated on a Superose 6 column before (black filled circle), or after nitrous acid degradation (empty blue square), or after chondroitinase ABC degradation (empty red triangle). Shown are the chromatograms of untreated MPS-I cells, but the ones derived from untreated control cells or 20 μM ebselen-treated MPS-I cells are superimposable (not shown for clarity).
	Fig. 6. Ebselen blocks NC cell migration in Xenopus embryos, phenocopying the effect of Dse/DS-epi1 knockdown. (A) Control Xenopus embryo at tadpole stage. (B) Sibling embryo after treatment with 12.5 μM ebselen. Note the reduction of head and eye structures, loss of dorsal fin structures (arrowheads) and low number of pigmented melanocytes (arrow), which suggest defects in NC cell development. (C and C′) Early tailbud embryo in side view after whole-mount in situ hybridization. Twist (blue stain) demarcates four distinct streams of cranial NC cells which migrate ventrally in the developing head: mandibular cells ventral to the eye, followed by hyoid and two branchial arch cell streams more posteriorly. (D and D′) Ebselen treatment suppresses the migration of cranial NC cells. Note that Twist+ cells remain dorsal to the eye and in the dorsal head (arrow). The proportion of embryos with the described phenotypes was as follows: A, 43/43; B, 25/25 (small head), 20/25 (reduced dorsal fin), 24/25 (less melanocytes); C, 60/60; D, 53/53. Each experiment was at least performed two times. br, branchial arch; ey, eye; hy, hyoid arch; ma, mandibular arch.

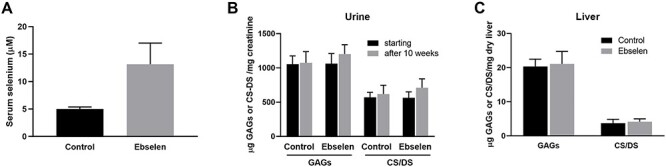

	Fig. 7. Ebselen does not change CS/DS and GAG content in urine and organs of MPS-I mice. Five MPS-I mice were fed with food supplemented with ebselen to give an intake of 100 mg/kg/day/mouse and five MPS-I mice were fed with control food for 10 weeks. At the end of the treatment period, serum ebselen, measured as selenium, was quantified by inductively coupled plasma mass spectrometry (A) (n = 4). GAGs were purified from urine and organs and quantified by the carbazole reaction (analytical triplicates). The CS/DS was separately quantified by disaccharide fingerprint following chondroitinase ABC digestion (analytical duplicates). Urine is shown in (B) (n = 5) and liver in (C) (n = 5). Brain, kidney and spleen are shown in Supplementary Figure S2.
